Linea Halo

Custom LED Bar Address

Regular price: $0.00
Regular price
Sale price: $0.00

Shipping calculated at checkout.

Made in Canada

Fast shipping

Warranty

Easy returns

Weather-resistant

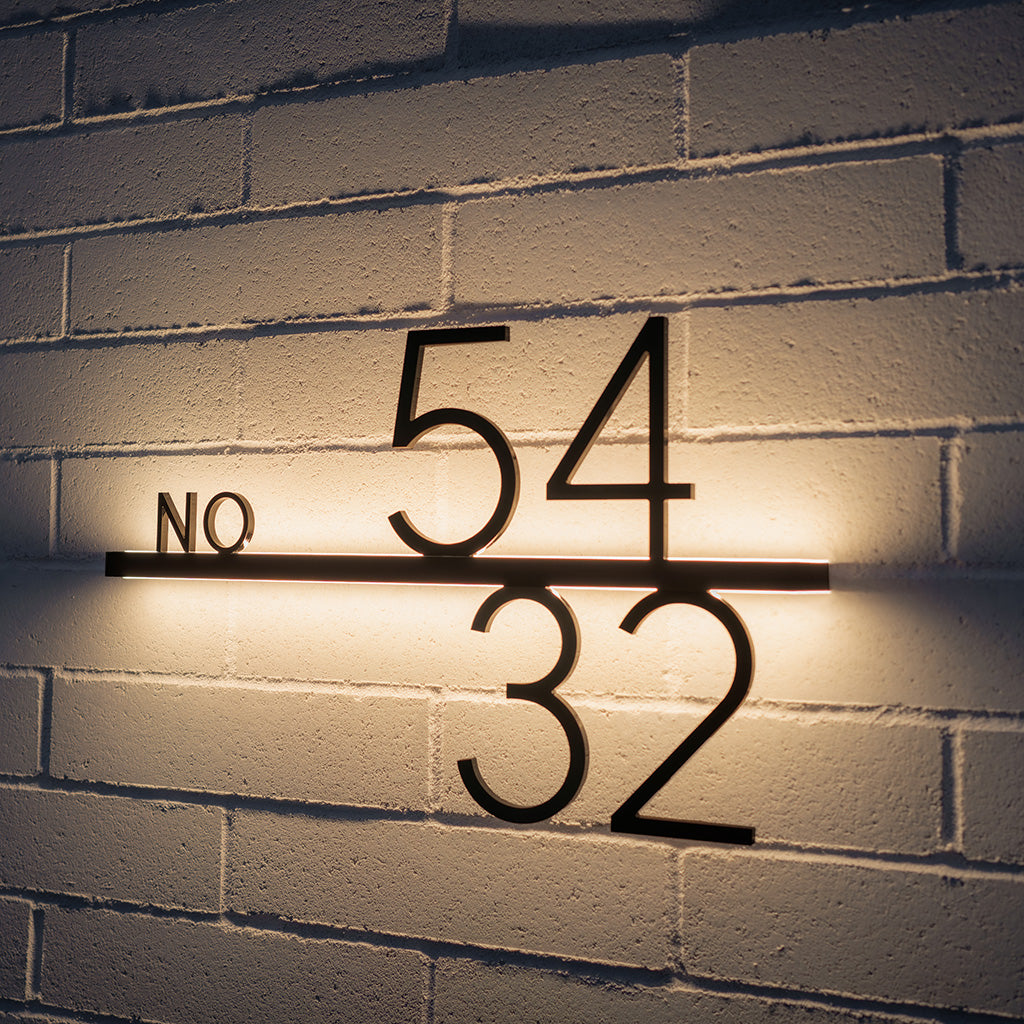

Linea Halo is an illuminated address mounted on a light bar, featuring a modern, minimalist design created to deliver an elegant presence and consistent readability. The integrated LED bar casts even light across the full length of the address, creating a balanced and refined result.

Black numbers are mounted on an aluminum bar, adding subtle shadow play and a durable architectural finish. Designed for easy installation and low maintenance, Linea Halo integrates seamlessly as a custom illuminated address solution for residential, multi-unit, and commercial projects.

Product details

• Customizable Address
Linea Halo allows you to create a custom address by combining numbers and letters. This flexibility lets you display a house number, street name, or family name based on your project.

• Integrated Light Bar
LED lighting is built directly into the bar, providing even light distribution across the entire address for a balanced and consistent look.

• Easy Maintenance
The lighting system is designed for simple long-term maintenance. If needed, the LED strip can be replaced directly within the bar—without removing the characters or re-drilling the surface.

• Versatile Use
Suitable for single-family homes, multi-unit buildings, and commercial projects, both indoors and outdoors.

Durable and weather-resistant material

• Linea Bar
Made from extruded aluminum with a baked black paint finish, designed to withstand outdoor conditions.

• Integrated LED lighting
Two 3000K (warm white) LED strips are integrated into the bar, one facing upwards and one downwards. They can be connected together or individually, depending on the desired effect.

• Characters
Numbers in matte black acrylic, 3/8" thick.

• Designed for outdoor use
All materials are weather-resistant and designed for long-lasting outdoor use. However, to prevent damage to the lettering from the weight of snow, installation must be carried out in a covered area, protected from accumulations and debris thrown by a snowblower or plow.

Types of installation offered

• Horizontal Installation
Linea Halo is designed for horizontal installation only.

• Drilling and Mounting the Bar
A through-wall hole is required to pass the electrical wire into the building for connection. The bar is then secured to the surface using two screws and anchors.

• Character Installation
Numbers and letters slide onto the dedicated rods, allowing you to adjust positioning and spacing according to your preferences.

Available characters

• Numbers
Available in 7" and 9" sizes, offering visibility suited to each project.

• Letters
Available in a 2" size, ideal for adding a street name, family name, or custom word.

• Character Positioning
Characters can be installed on the top, bottom, or both sides of the bar, depending on the desired effect.

Measures

• Character Height
The stated heights (7" or 9" for numbers, 2" for letters) are approximate. Linea Halo uses its own custom typeface, which may result in slight variations between certain characters. When installed as a complete address, the overall look remains uniform and visually balanced.

• Stroke Width
Stroke width varies by size to maintain visual balance:
7": approximately 1/2"
9": approximately 3/4"
2" (letters): approximately 3/16"

• Bar Length
Linea Halo bars are available in multiple lengths to suit the number of characters and chosen configuration:
8.5" – 13" – 19.5" – 25" – 33.5"
The bar length determines the recommended number of characters and the overall visual balance of the address.

Important Notes

The Linea Halo bar and numbers are covered by a 5-year warranty. Electrical components, including the transformer, LED strips, and wiring, are covered by a 1-year warranty.

To preserve the integrity of the characters over time, Linea Halo should be installed in a protected location. Direct exposure to snow buildup or impact from snow removal may cause damage that is not related to a product defect.

Easy installation

All our products are designed for quick and easy installation, regardless of the model you choose. We include positioning templates to help you perfectly align your address or sign. A complete installation kit is also provided to simplify the process.

Thanks to these tools and our clear instructions, installation becomes intuitive and accessible, even without experience. All in just a few minutes.

Customization

This address offers great creative freedom to design signage that reflects your brand. Numbers, letters, or a combination of both—it's possible to include a house number, street name, family name, or any other desired information.

Thanks to the configurator, you can visualize how your address will look and adjust the positioning of the characters to obtain a balanced result, perfectly suited to your facade.

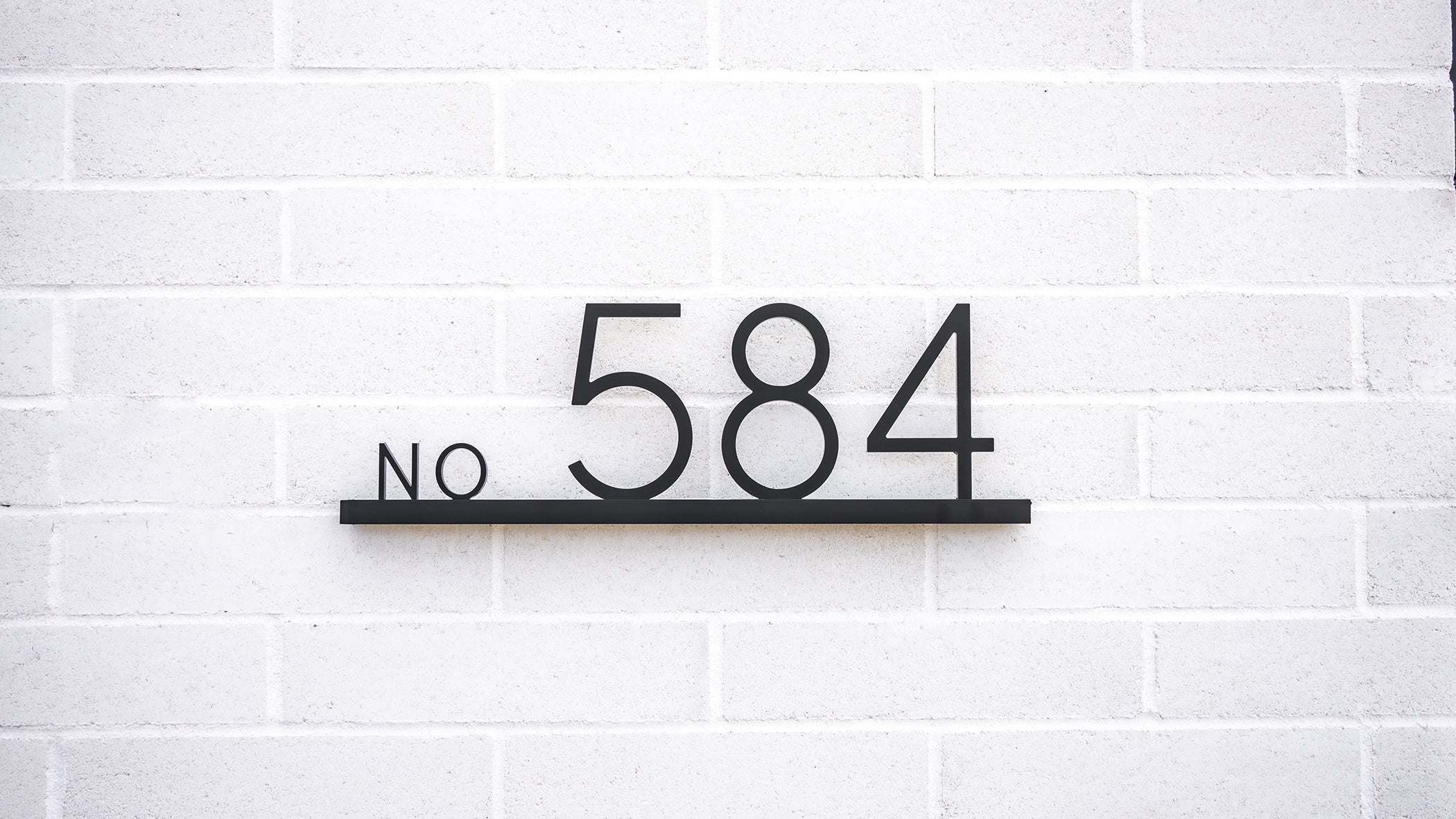

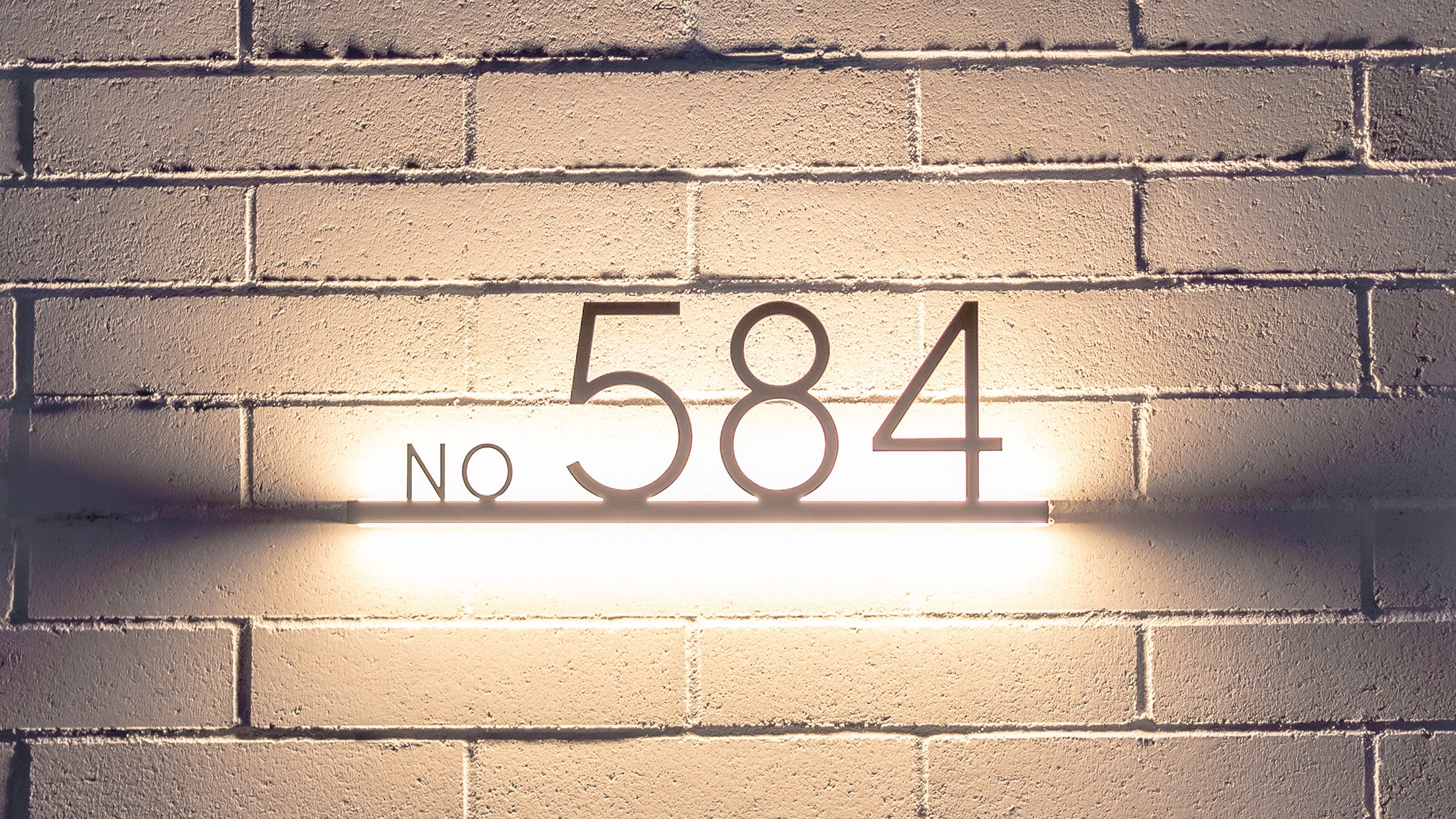

Same design. Two experiences.

Whether illuminated or not, the address remains legible, elegant, and perfectly integrated into the architecture. The Linea Halo version includes lighting for optimal visibility day and night, while the Linea version is offered without lighting for those who prefer the same clean design without illumination.

Get inspired

FAQ

What bar length should I choose based on my house number?

The bar length is suggested based on the number of characters and the selected size (7" or 9" numbers, 2" letters). As a guideline, Linea Halo bars are available in the following lengths: 8.5" – 13" – 19.5" – 25" – 33.5", each typically corresponding to a recommended number of characters for a balanced look.

On this page, the suggestions associated with each length are provided to help guide your choice. The visualizer then allows you to test different configurations and preview the final result before making your selection.

If you’re unsure, choosing a slightly longer bar often provides more flexibility during installation. The suggestions and visualizer are there to guide you—while still giving you complete freedom in your final decision.

What technical information do I need to know before installation?

Linea Halo operates on 24V low voltage with a maximum power output of 19 watts. A transformer is included with each order and must be installed indoors only.

If the installation is carried out by an electrician, it’s important to plan for a 24V DC output at the address location.

For everyday convenience, the illuminated address can be connected to a smart plug, allowing you to turn it on, off, or schedule it as needed. A detailed technical sheet can also be provided upon request.

The system is simple, safe, and designed for a compliant, long-lasting installation.

What happens if the LED strip needs to be replaced?

If an LED strip stops working, it is covered by a 1-year warranty and can be easily replaced. Replacement parts are also available for purchase—simply contact us to obtain one.

The LED strips have an estimated lifespan of approximately 50,000 hours, representing many years of normal use. Replacement is done directly within the bar, without removing the characters or re-drilling the surface.

Unlike individual illuminated numbers, where each character has its own light source, the Linea Halo system uses a centralized lighting setup. This eliminates compatibility issues and ensures long-term part availability.

The integrated light bar allows for simple, durable maintenance—independent of the characters.

Can I install Linea Halo myself or do I need to hire an electrician?

Linea Halo is designed for a simple and accessible installation. Mounting the bar and installing the characters can be done by a DIYer comfortable with basic tools. The included transformer plugs into a standard indoor electrical outlet.

If you prefer a more permanent installation or want to fully conceal the power supply, hiring an electrician may be recommended to provide a 24V DC output at the address location.

Installation can be completed either by yourself or by an electrician, depending on the level of finish you’re looking for.

A practical guide to choosing the right address

Choosing the right bar length
The bar length directly influences the visual balance of your address. Based on the number of digits and their height (7" or 9"), certain lengths are recommended to achieve a harmonious result.
The visualizer allows you to preview your address and easily compare formats before making your choice. It helps you select the right size with confidence.
Choose Character Positioning
The visualizer is for preview purposes only and does not dictate the final assembly. During installation, you have full freedom to adjust the spacing and alignment of the numbers and letters to your preference.
The only choice to determine in advance is the positioning of the characters—top, bottom, or both sides of the bar.
This gives you maximum flexibility during the actual installation.
Choosing the Power Supply Location
Before installation, it’s important to plan the routing of the electrical wire into the building. Choosing the right location ensures a discreet installation, easy connection to the transformer, and a clean final result.
Proper planning helps ensure a smooth, hassle-free installation.
